1.QT8-15 brick machine factory production description
Key Components

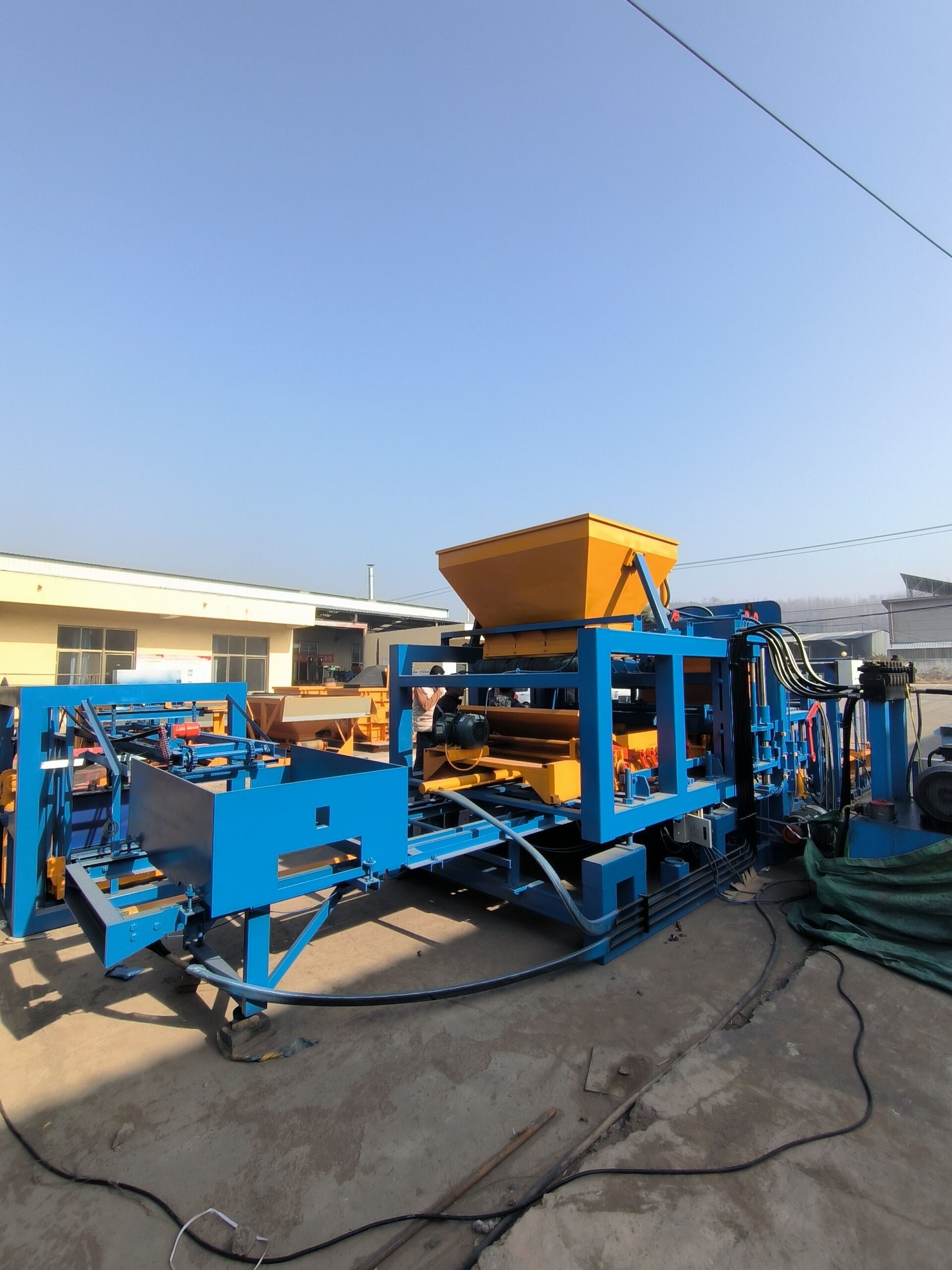

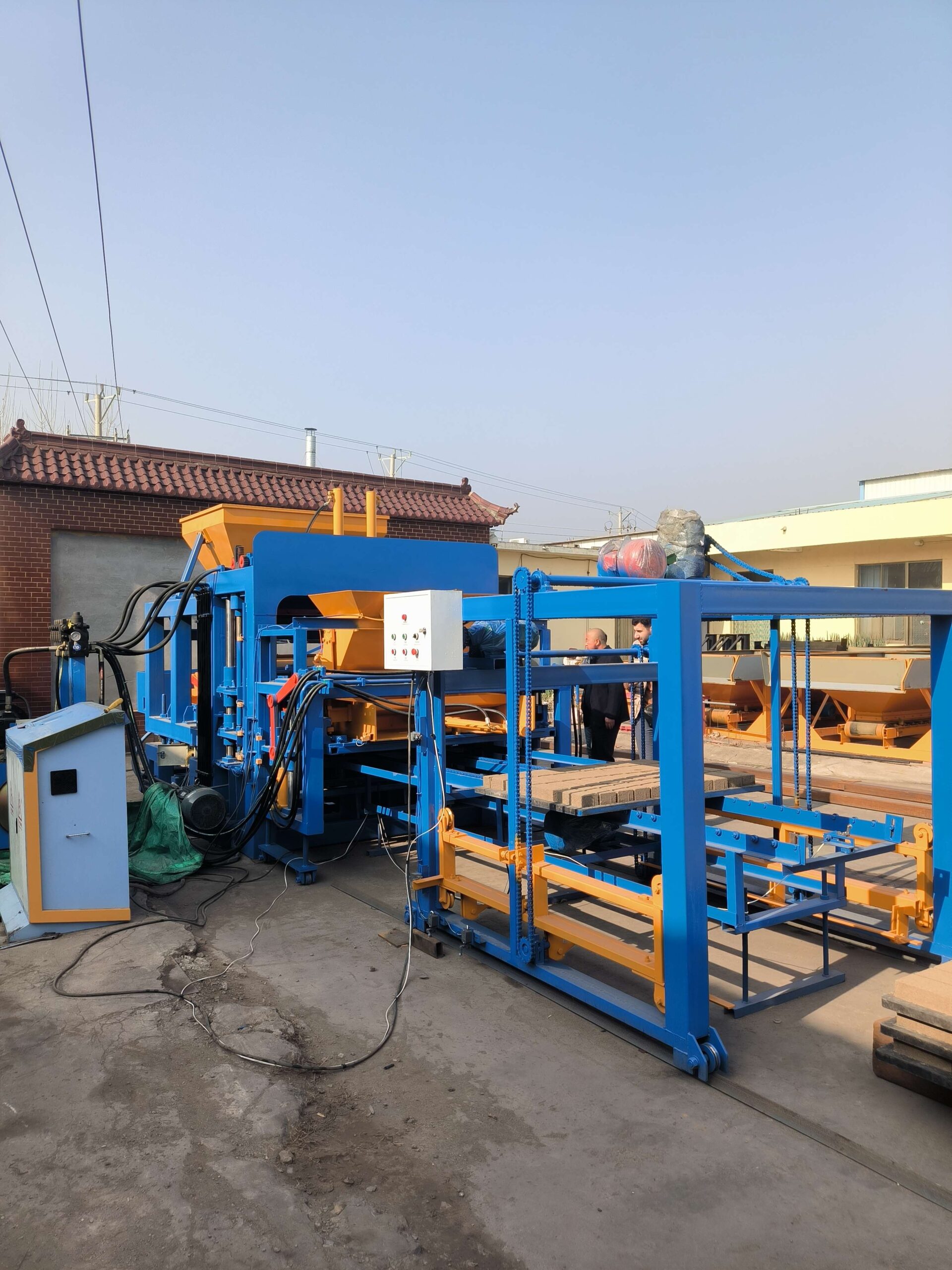

A complete QT8-15 production line typically includes the following core components:
Main Unit: The core molding equipment, responsible for material distribution, vibration, pressurization, and demolding.
Concrete Batching Machine: Automatically measures and mixes cement, aggregates (sand, stone), water, and other additives.
Belt Conveyor: Transports the mixed concrete to the hopper above the main unit.
Fully Automated Pallet Conveying System: Automatically feeds pallets carrying brick blanks into the main unit and delivers them out after molding.
Palletizer/Robot: Automatically stacks the molded brick blanks into stacks for easy curing and transportation.
PLC Control Cabinet: The brain of the entire production line, integrating a touchscreen for convenient parameter setting and monitoring of operating status.
Workflow Overview
Batching and Mixing: Raw materials are mixed evenly in the batching machine according to the specified proportions.
Conveying: Concrete is conveyed to the main unit’s hopper via a belt conveyor.
Distribution: The hopper evenly fills the molds with the concrete.
Vibration and Pressurization: Under strong vibration and hydraulic pressure, the mold rapidly compacts and shapes the concrete.
Demolding: The shaped brick blanks are ejected from the mold and left on the pallet below.

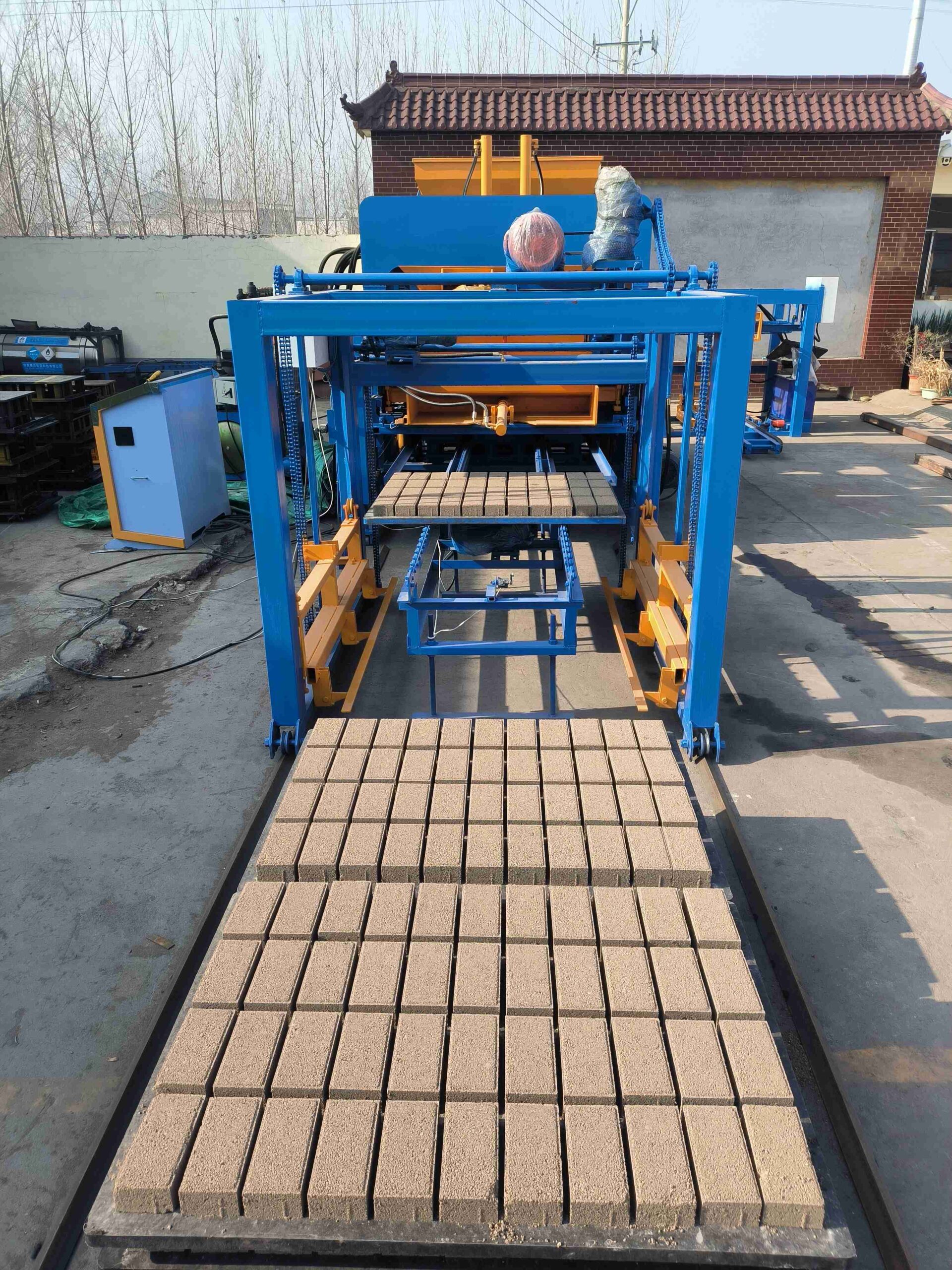

Conveying and Stacking: The pallets carrying the brick blanks are sent out of the main unit, where a stacker automatically grabs and stacks them.
Curing: The stacked brick blanks are transported to the curing area for water curing to achieve their final strength.
2.QT8-15 brick production line parameters
|
A
|
QT8-15 Host brick machine
a. Automatic pallet system
b. Automatic material feeding system
|
|
QT8-15 Host machine total power
|
47.7KW
|
|
B
|
Block receiver
|
|
Molding cycle
|
15s
|
|
C
|

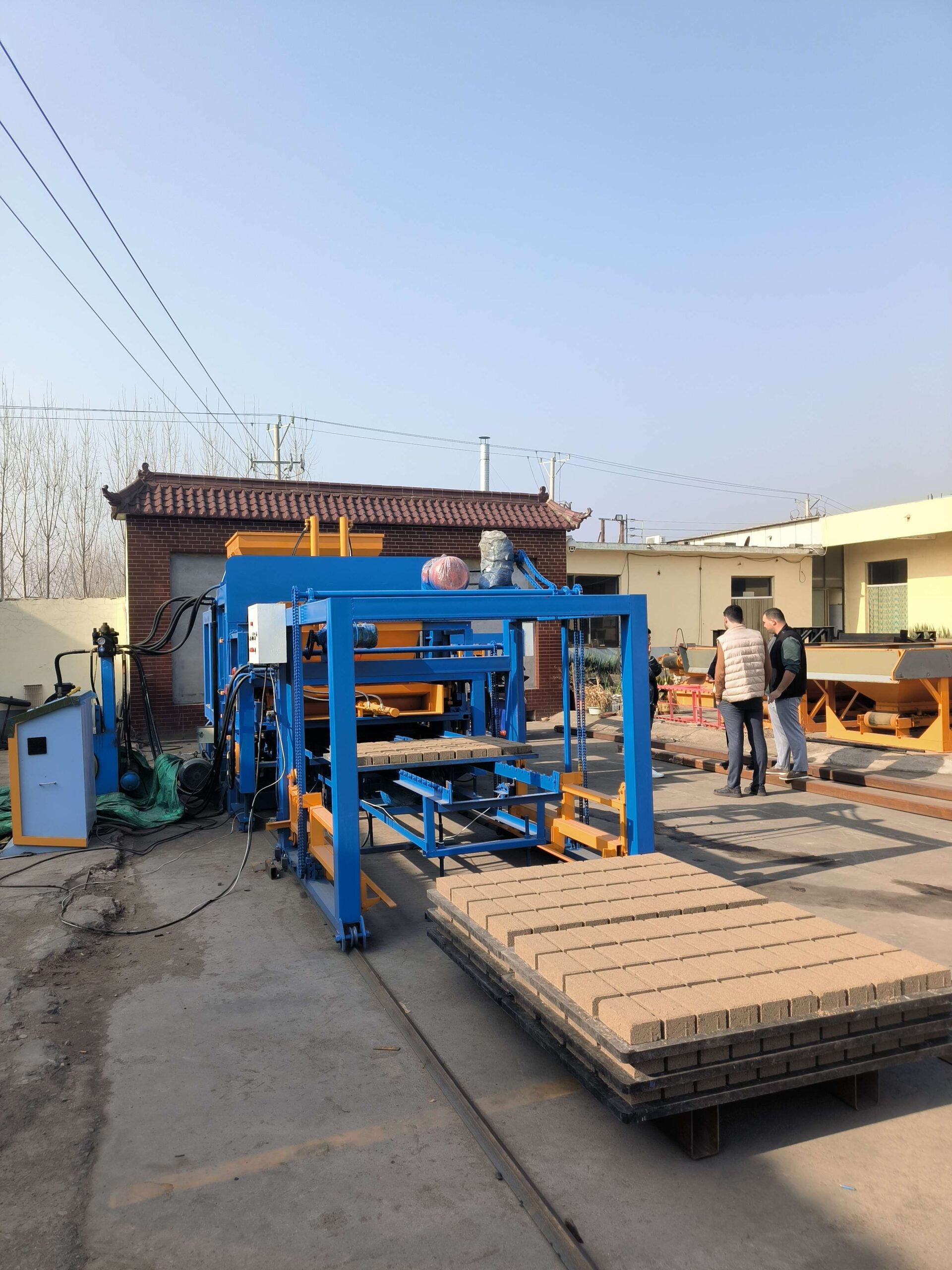

Stacker, it could layer 4-5 pallets blocks
|
|
Vibration force
|
90-110KN
|
|
D
|
8m conveyor
|
|
Host brick machine size
|
5300*2050*2700
|
|
E
|
JS750 Mixer bigger power, 38.6KW
|
|
Weight
|
8000KGS
|
|
F
|
Batching machine PLD 800, power, 9KW
|
|
Pallet size
|
1300*870mm
|
