QT40-3C Mini Small Moving Mobile Concrete Hollow Block Brick Making Machine

Name: QT40-3C Mini Small Moving Mobile Concrete Hollow Block Brick Making Machine - tophighmachinery.com
Price: 1300.00 USD
Availability: InStock

Original price was: $1,500.00.Current price is: $1,300.00.

The QT40-3C is a small, manually operated, mechanically driven, tabletop vibrating brick-making machine.

Advantages:
Low Investment Cost: One of the cheapest entry-level brick-making machines, with a low barrier to entry for startups.
Simple Operation: No highly skilled workers are required; simple training is all it takes to operate it.
Convenient Maintenance: Simple mechanical structure, easy maintenance, and inexpensive and readily available spare parts.
Energy Saving: Low power consumption.
High Mobility: Ideal for mobile operations.

Disadvantages:
High Labor Intensity: Relies entirely on manual operation; production efficiency is affected by the operator’s physical strength, requiring 2-3 people.
Low Production Efficiency: Compared to fully automatic hydraulic brick machines, output is very limited.
Slightly Poor Product Consistency: Due to manual control of material feeding and vibration time, the density and appearance consistency of bricks are not as good as with automatic equipment.

Safety: Manual operation carries a certain risk of pinching injuries; extra caution is required.

Suitable Scenarios and Users:
Small-Scale Individual Entrepreneurs: Individuals with limited funds who wish to start small.

Rural self-built house owners: Producing their own bricks for construction reduces costs.

Small building material factories: Used as auxiliary or start-up equipment.

Construction sites: On-site brick making reduces transportation costs and utilizes construction waste.

Export to developing countries: Due to their durability and low price, they are often exported to Africa, Southeast Asia, and other regions.

Category: moving block making machine

Description

The QT40-3C is a small, manually operated, mechanically driven, tabletop vibrating brick-making machine.

Key Features:
Small & Portable:The machine typically weighs around 100 kg, with a compact structure.

Equipped with wheels, it can be towed by a tractor or manually, making it ideal for moving between construction sites and realizing the concept of “mobile production.”

Mechanical Transmission & Manual Operation:It uses a traditional gear, crankshaft, and lever mechanism to move the pressure head and mold box.

All operations (such as feeding, vibration, and demold) are manually controlled by levers. This means it does not require complex hydraulic or electrical control systems, simplifying maintenance and reducing the failure rate.

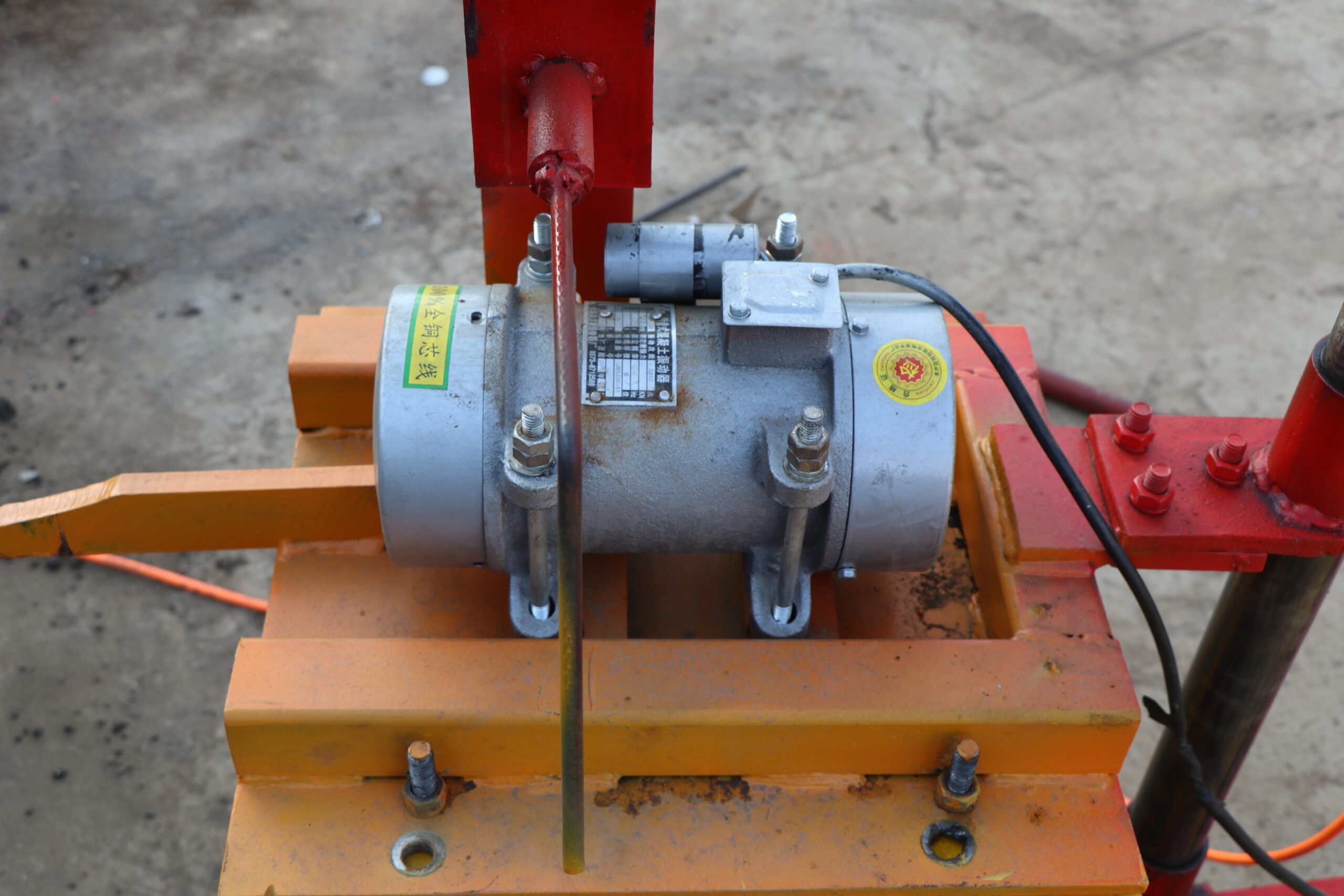

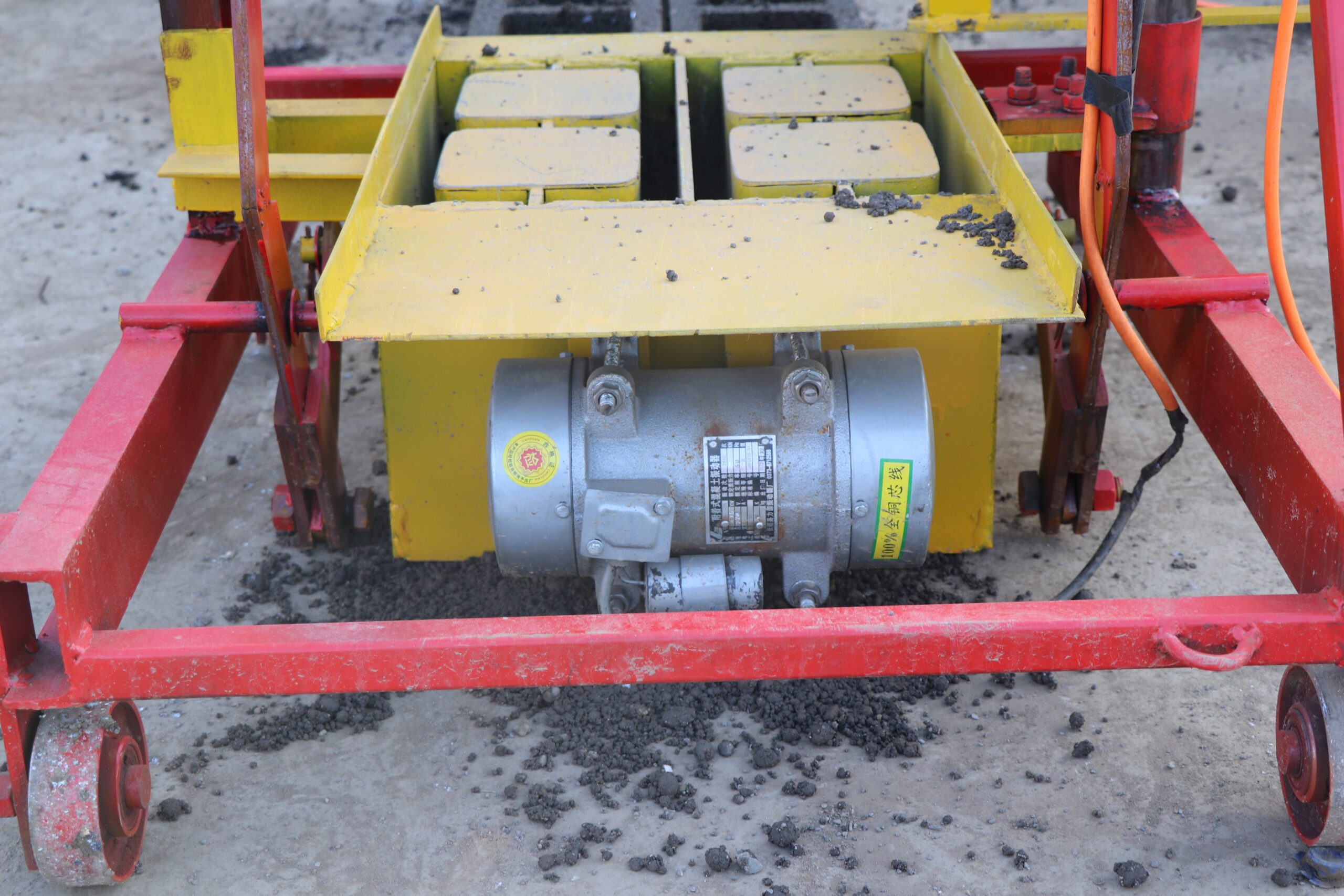

Tabletop Vibration: The vibration motor is mounted on the brick-making machine’s table, transmitting vibration force to the mold through the table, thus compacting the concrete material within the mold.

The excitation force of this method is relatively small compared to mold box vibration, but it is sufficient for producing solid bricks and ordinary hollow bricks.

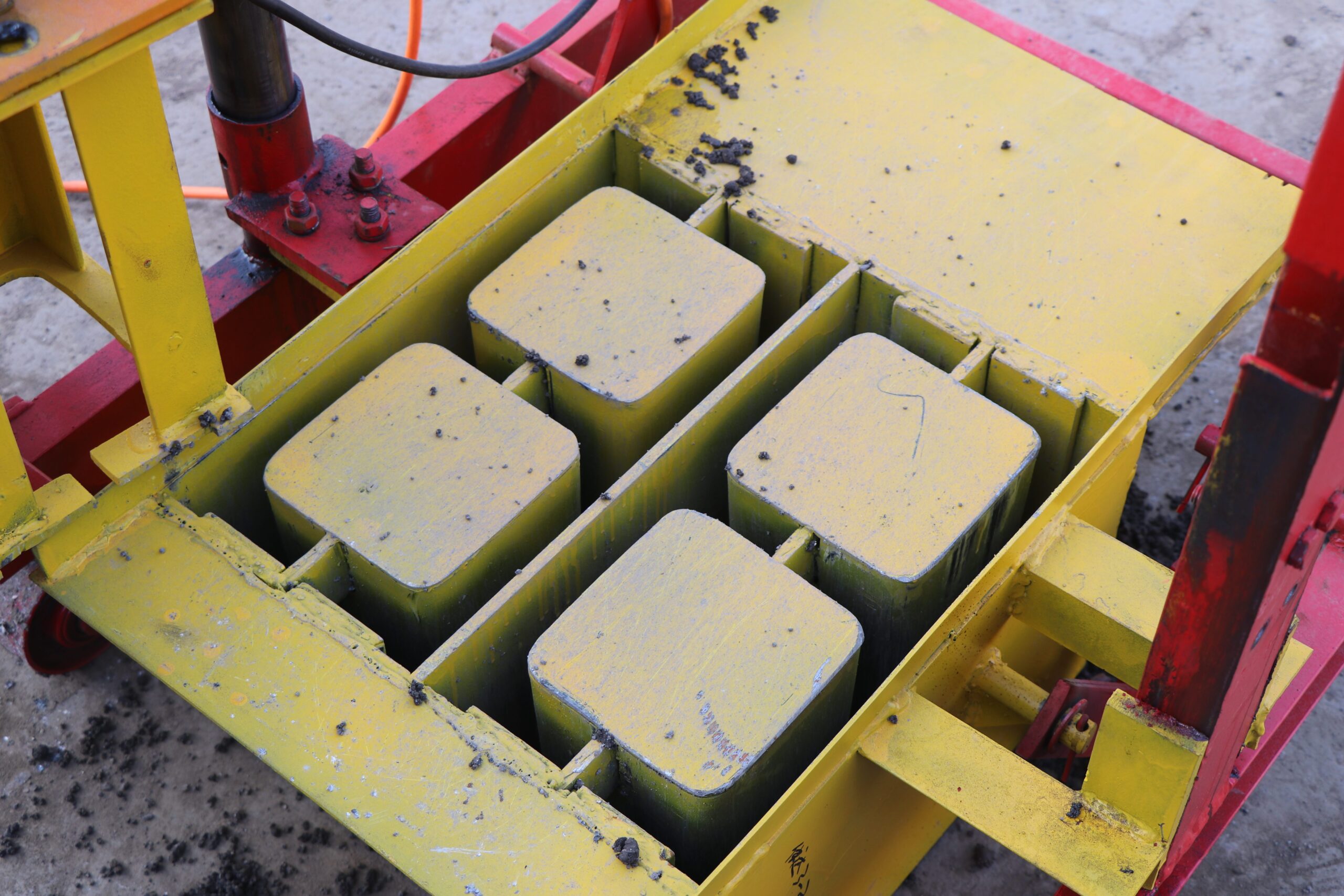

Multi-Mold Functionality: The core component is the “mold.” Users can purchase different molds to produce cement bricks of different specifications, such as hollow bricks, solid bricks, and interlocking bricks, on the same main machine, increasing the flexibility of the equipment.

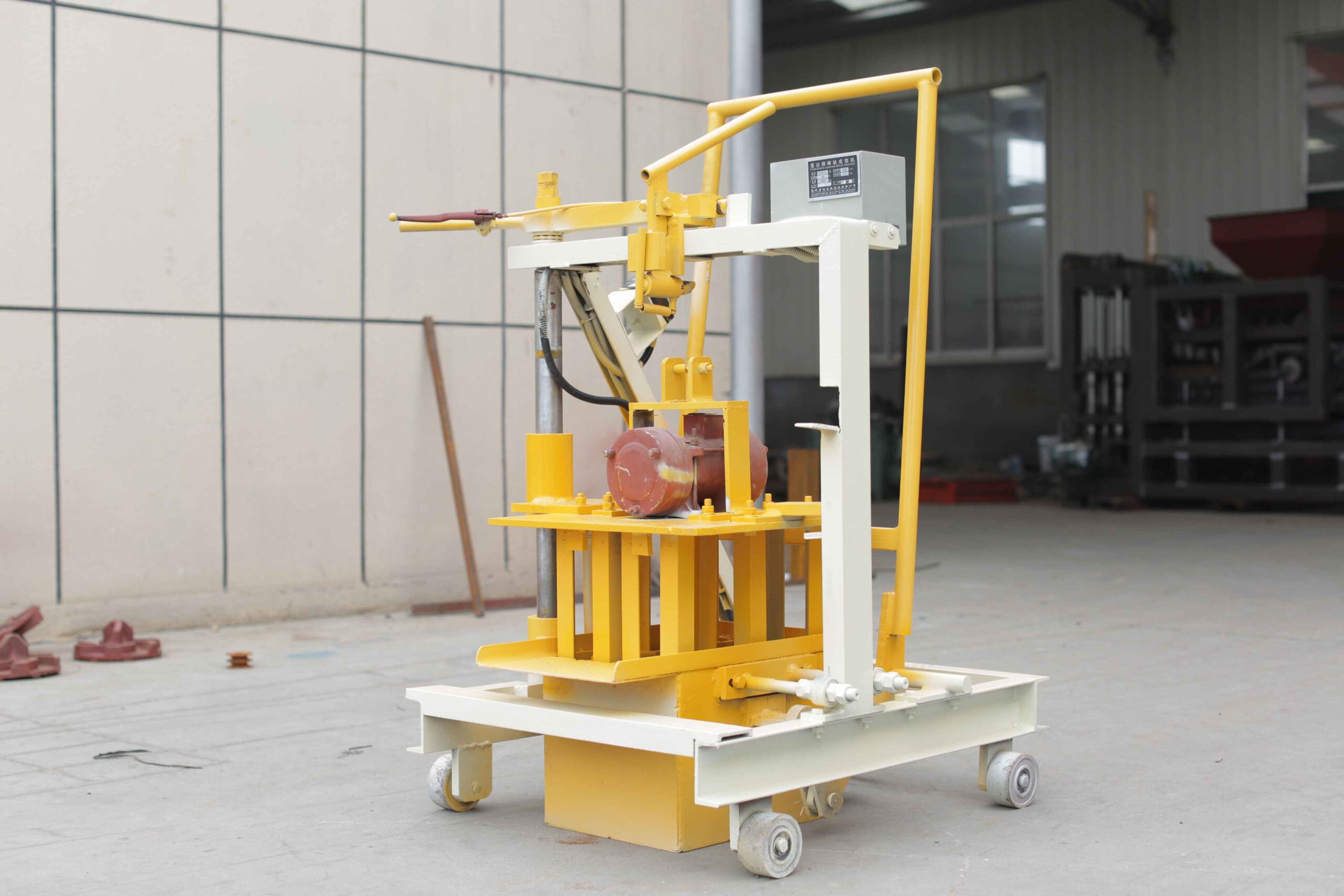

QT40-3C mini mobile block machine

QT40-3C is one small manual block making machine of egg laying block/brick machine series.

The vibration method of QT40-3C brick making machine is simultaneous vibration. So the blocks produced are of good quality, large density and high strength.

technical parameters
Dimension	*95010501260mm*
Power	1.5KW
Voltage	220v/380v
Berat badan	350kgs
Vibration force	18kn
Vibration freqyency	2800r/min
Molding cycle	45s
Worker	2-3 workers

Name	Pcs/mold	Pcs/8 hours
*400200200mm*	2	1280
*400150200mm*	2	1280
*400125200mm*	3	1920
*400100200mm*	3	1920
Solid brick *400200200mm*	2	1280

ALL THE KEY PARTS ARE HEAT TREATED

MORE HARDER AND DURABLE!
