제품 사양
특징:

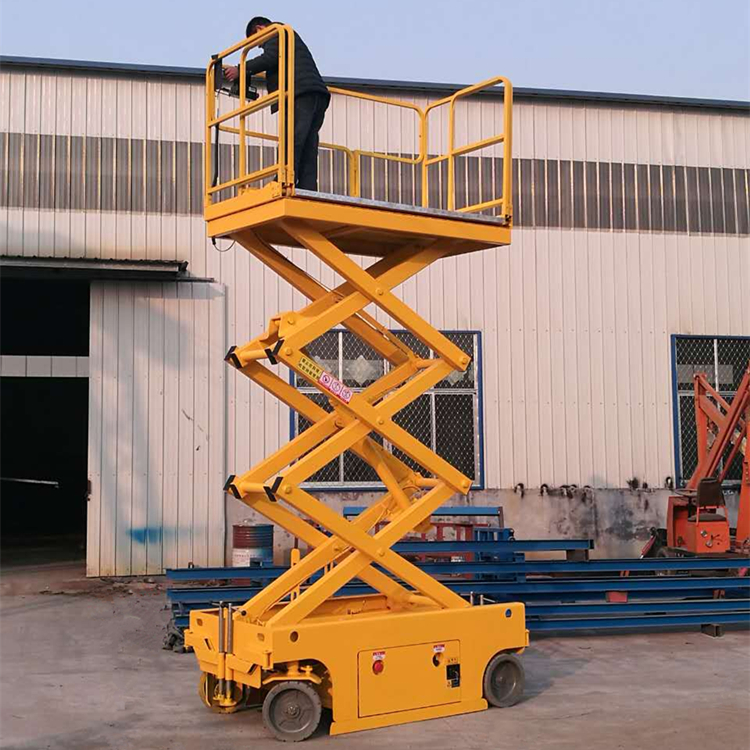

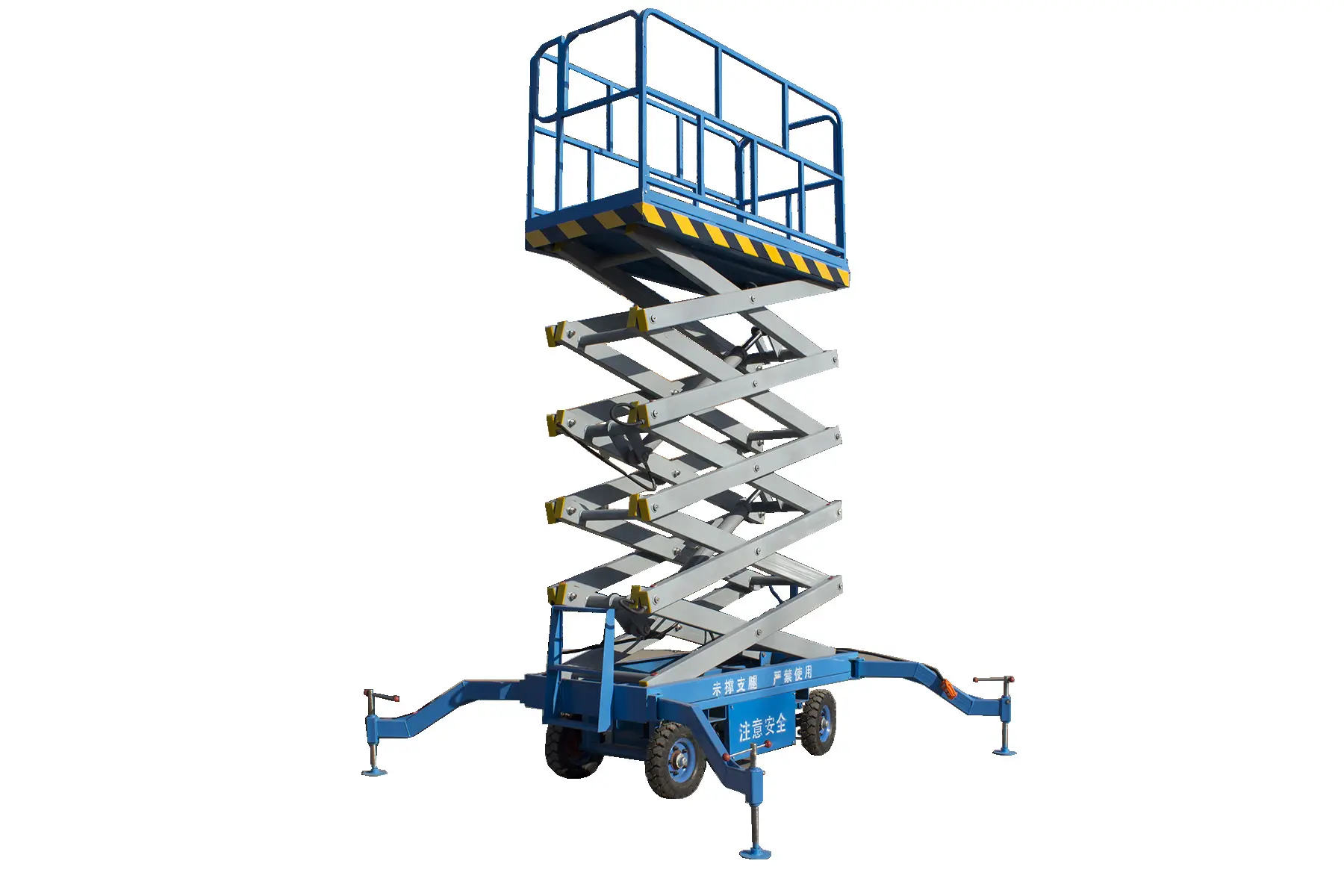

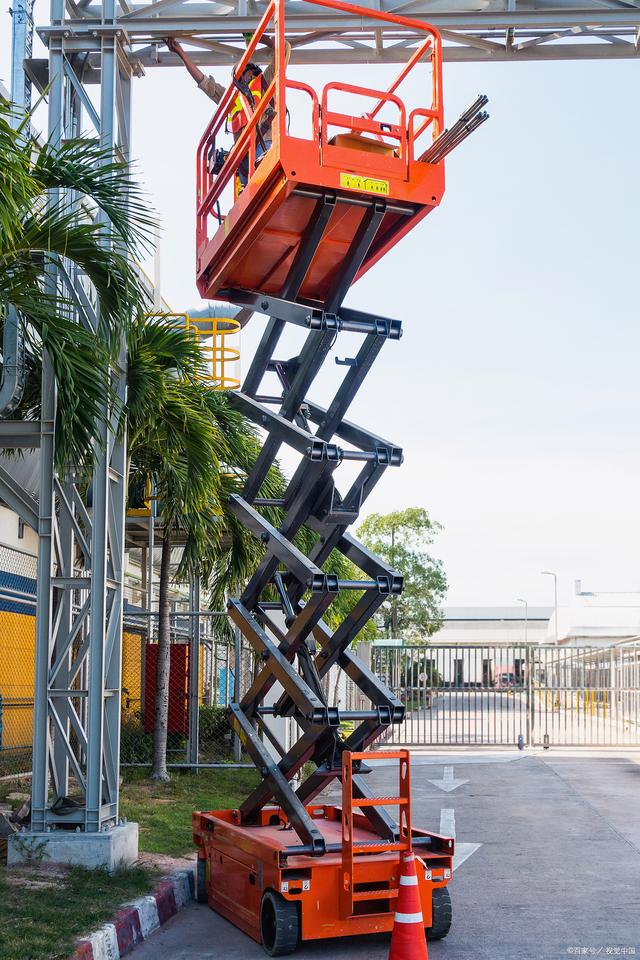

Hydraulic Scissor lifting platform, the product is mainly used in workshops, warehouses and various work placement layers and
transportation of goods. It has large carrying capacity, stable lifting, and convenient maintenance. It is an economical and
suitable low-floor space to replace elevators and ideal cargo transportation equipment.
Hydraulic Scissor lifting platform, the product is mainly used in workshops, warehouses and various work placement layers and
transportation of goods. It has large carrying capacity, stable lifting, and convenient maintenance. It is an economical and
suitable low-floor space to replace elevators and ideal cargo transportation equipment.
Scissor Lift Platform Features:
1. Great load capacity, stable lifting 2. Compact structure and simple appearance
3. Simple and convenient maintenance
1. Great load capacity, stable lifting 2. Compact structure and simple appearance
3. Simple and convenient maintenance
|
items
|
07series
|
08series
|
12series
|
14series
|
||||
|
models
|
GTJZ
|
|||||||
|
0807DC
|
0808DC
|
1008DC
|
1012DC
|
1212DC
|
1412DC
|
1414DC
|
1614DC
|
|
|
capacity
|
230kg
|
380kg
|
230kg
|
450kg
|
320kg
|
320kg
|
450kg
|
200kg
|
|
Capacity-extension deck
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
|
Max occupancy
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Max working
height-A |
7.80m
|
8.20m
|
10.10m
|
10.10m
|
12.00m
|
13.80m
|
13.50m
|
15.70m
|
|
Max platform
height-B |
5.80m
|
6.20m
|
8.10m
|
8.10m
|
10.00m
|
11.80m
|
11.50m
|
13.70m
|
|
Length-C
|
1.86m
|
2.42m
|
2.42m
|
2.42m
|
2.42m
|
2.42m
|
2.79m
|
2.79m
|
|
Width-D
|
0.76m
|
0.83m
|
0.83m
|
1.17m
|
1.17m
|
1.17m
|
1.27m
|
1.27m
|
|
Height(raillings
unfolded) |
2.19m
|
2.24m
|
2.37m
|
2.36m
|
2.49m
|
2.62m
|
2.49m
|
2.62m
|
|
Height-E
(railling folded) |
1.85m
|
1.94m
|
2.07m
|
1.80m
|
1.93m
|
2.06m
|
1.93m
|
2.06m
|
|
Platform size
(L×w-F) |
1.67m×
0.74m |
2.27m×
0.83m |
2.27m×
0.83m |
2.27m×
1.14m |
2.27m×
1.14m |
2.27m×
1.14m |
2.64m×
1.14m |
2.64m×
1.14 m |
|
Extension deck
size -G |
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
|
Ground
clearance (stowed) |
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
|
Ground
clearance (elevated) |
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
|
wheelbase
|
1.40m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
2.24m
|
2.24m
|
|
Min turning
radius (inside) |
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
|
Min turning radius
(outside) |
1.60m
|
2.25m
|
2.25m
|
2.23m
|
2.23m
|
2.23m
|
2.25m
|
2.25m
|
|
Driving motor
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
|
Lifting motor
|
24V/2.0kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
|
Driving speed
(stowed) |
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
|
Driving speed
(elevated) |
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|
Lifting/lowering
speed |
18/22sec
|
24/34sec
|
28/40sec
|
28/40sec
|
45/36sec
|
50/38sec
|
60/45sec
|
80/60sec
|
|
batter
|
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
240Ah |
4×6V/
260Ah |
4×12V/
300Ah |
4×12V/
300Ah |
|
charger
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
|
Max
gradeability |
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|
Max tilt
|
3°/1.5°
|
3°/2°
|
3°/1.5°
|
3°/2°
|
3°/2°
|
3°/1.5°
|
3°/2°
|
3°/1.5°
|
|
tires
|
Φ323×
100mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
|
무게
|
1260kg
|
2020kg
|
2140kg
|
2270kg
|
2520kg
|
3140kg
|
3060kg
|
3220kg
|
ALL THE KEY PARTS ARE HEAT TREATED
MORE HARDER AND DURABLE!
