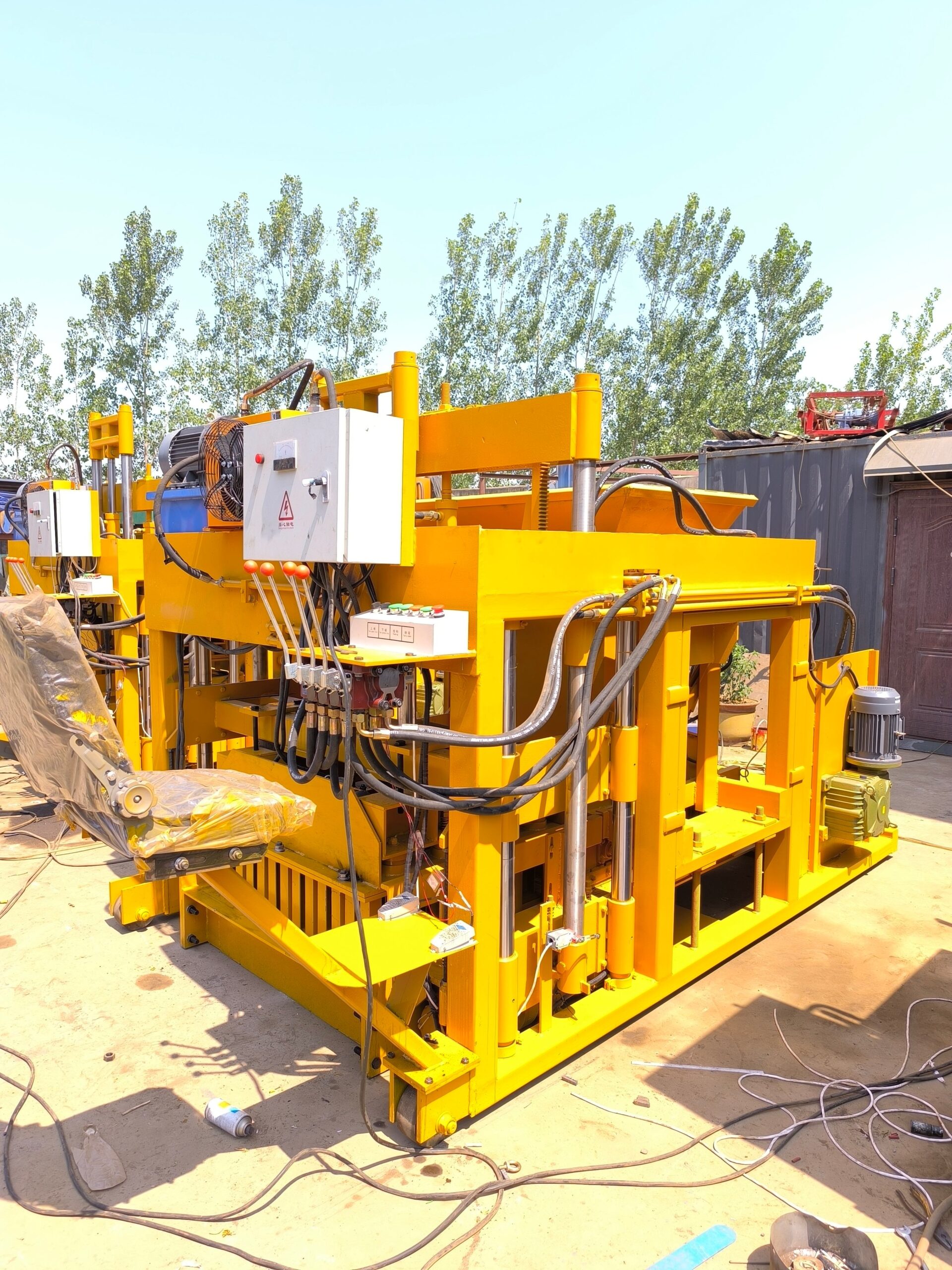

QMY6-25 Automatic Egg Laying Block Car Hollow Cement Interlocking Brick Making Machinery

Name: QMY6-25 Automatic Egg Laying Block Car Hollow Cement Interlocking Brick Making Machinery - tophighmachinery.com
Price: 10000.00 USD
Availability: InStock

Original price was: $11,000.00.Current price is: $10,000.00.

The QMY6-25 is a large, fully automatic, self-propelled cement block molding machine. It requires no fixed factory building or complex infrastructure, resulting in low-cost investment:

Savings on Pallets:No need to purchase thousands of expensive steel or plastic pallets.

Savings on Auxiliary Equipment:No need for complex conveying, circulation, and palletizing systems.

Savings on Factory Building:Only a curing area is needed; no large production workshop is required.

Savings on Labor:Minimal personnel required; extremely high degree of automation.

Extremely High Production Efficiency:Huge output; can produce 7000 standard hollow bricks (400*200*200mm) per day (8 hours), ideal for large-scale projects.

Simple Operation and Easy Maintenance:Simple process; all functions are integrated, making it easy for operators to learn.

The equipment structure is designed for mobile use, robust and durable.

Powerful vibration and hydraulic pressure ensure brick density. Bricks are naturally cured on-site, resulting in stable quality.

Category: moving block making machine

Description

QMY6-25 Movable Egg Laying Hollow Block Making Machine

Main features of QMY6-25 Movable Automatic hydraulic block machine

The QMY6-25 is a large, fully automatic, self-propelled cement block molding machine. It requires no fixed factory building or complex infrastructure, and can move autonomously to a flat curing area (such as a concrete surface). Like a hen laying eggs, it moves while directly stacking the formed brick blanks on the ground, integrating production, curing, and stacking.

Production Line Composition: A QMY6-25 production line is extremely simple:
Main Unit – QMY6-25 mobile brick making machine (integrating the walking system, hydraulic station, control system, and material distribution system).

Feeding Equipment: Typically equipped with a small loader or “hopper loader” to feed material to the main unit’s hopper.

Curing Area: A large, flat, hardened concrete surface, this is the core area of the entire production process. Brick blanks are produced, stationary, and naturally cured here.

Note: It does not require: pallets, brick conveyors, pallet circulation systems, stackers, brick blank transfer forklifts, etc.

Main parameter of QMY6-25 movable concrete hollow block machine:

Dimention of block machine	200018001600mm
Demold method	Hydraulic
Turning method	Hydraulic
Hydraulic system pressure	12-14MPA
Excitation frequency	3200hz
Total power	9.6KW
Total mass	2250KG
Molding cycle	15-25s
Molding	6pcs/mold (400200200/390190190)
Product capacity	6800pcs/8H
Hydraulic oil tank	24L
Moving method	Electricity move and hydraulic turn
Excitation way	Three-dimensional box excitation
Raw material	Crushed stone,sand,cement,dust and coal fly ash,cinder,slag,gangue,gravel,perlitle and industial wast.

Product capacity of QMY6-25 movable concrete hollow block machine:

Concrete Hollow Block size(mm)	Pcs/mold	Pcs/hr	Pcs/8hr
400200200	6	864pcs	6800pcs
400150200	8	1152pcs	9200pcs
400250200	4	576pcs	4680pcs
