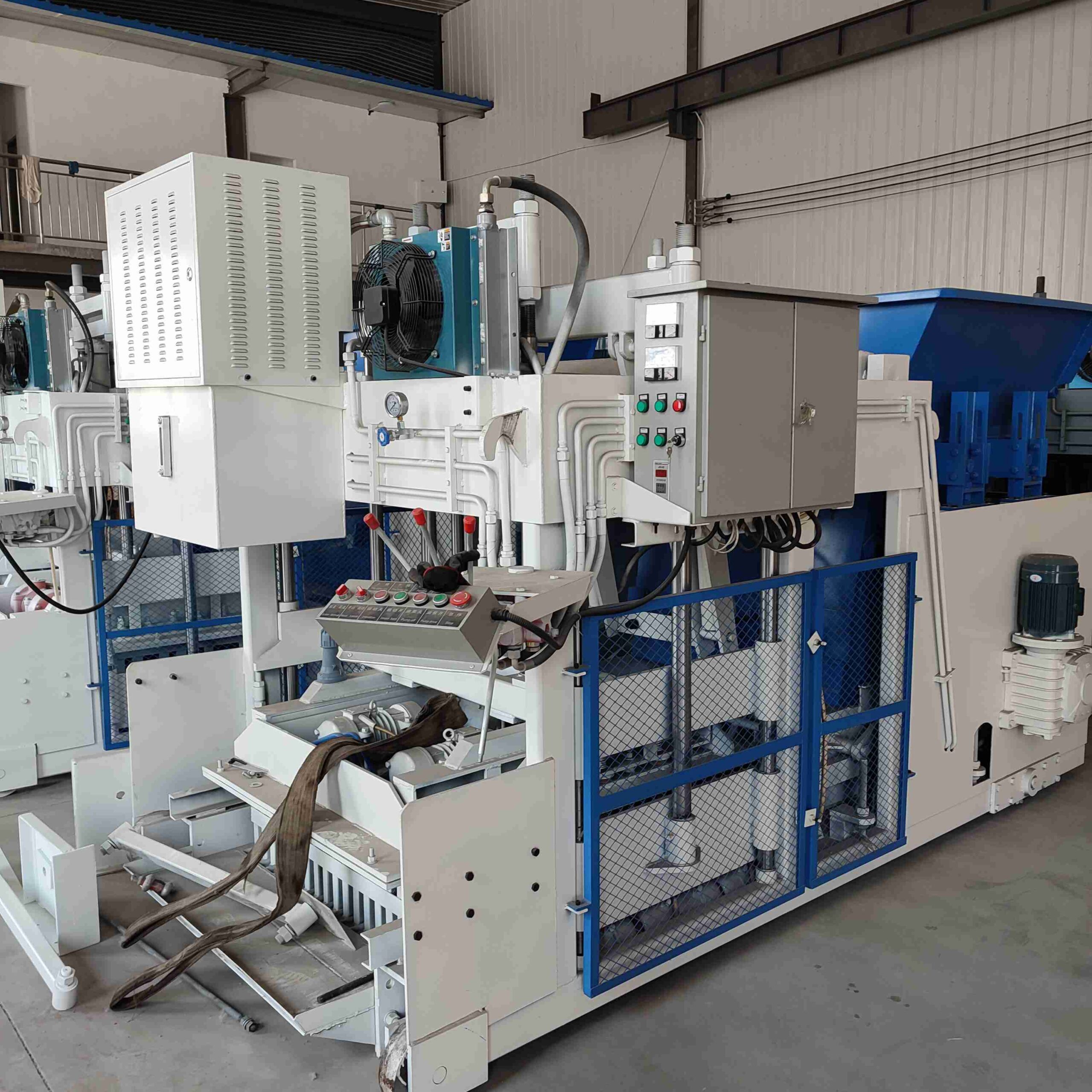

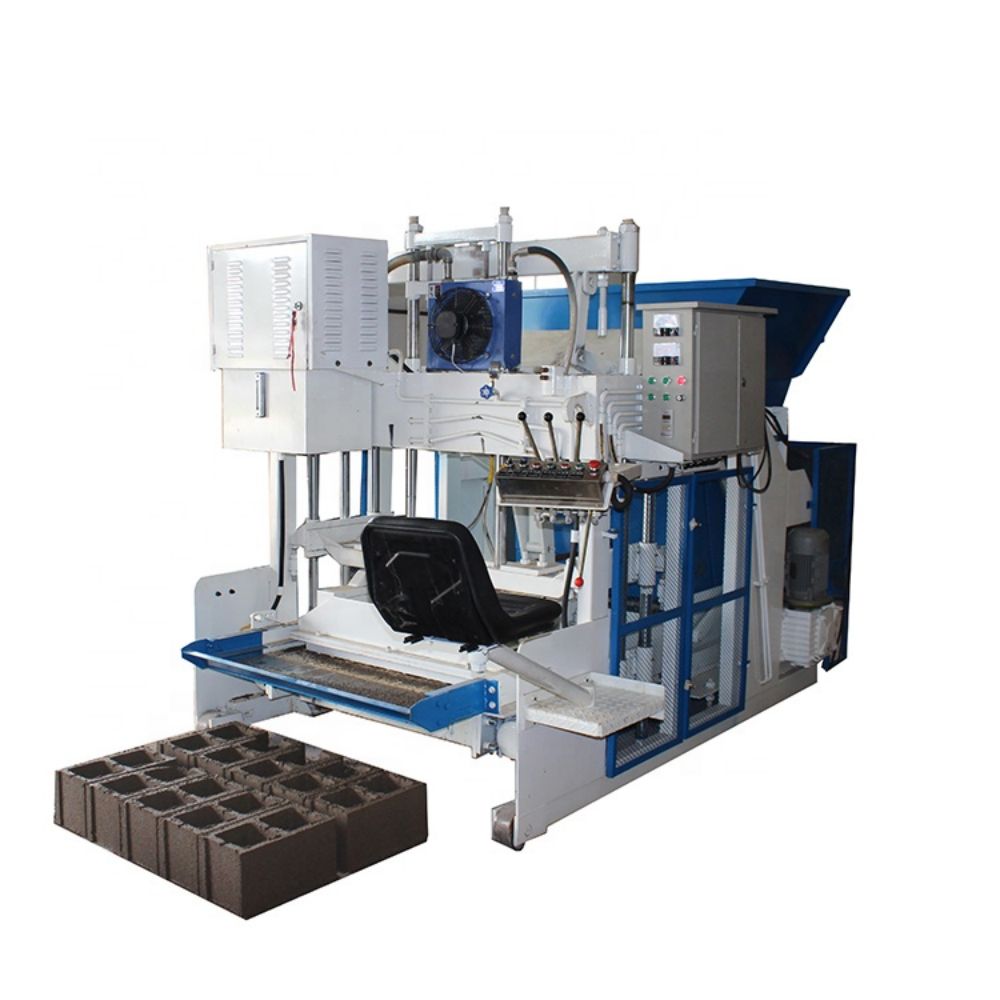

Main features of QMY10-25 Movable Automatic hydraulic block machine
The QMY10-25 is a large, fully automatic, self-propelled cement block molding machine. It requires no fixed factory building or complex infrastructure, and can move autonomously to a flat curing area (such as a concrete surface). Like a hen laying eggs, it moves while directly stacking the formed brick blanks on the ground, integrating production, curing, and stacking.
Production Line Composition: A QMY10-25 production line is extremely simple:
Main Unit – QMY10-25 mobile brick making machine (integrating the walking system, hydraulic station, control system, and material distribution system).
Feeding Equipment: Typically equipped with a small loader or “hopper loader” to feed material to the main unit’s hopper.
Curing Area: A large, flat, hardened concrete surface, this is the core area of the entire production process. Brick blanks are produced, stationary, and naturally cured here.
Note: It does not require: pallets, brick conveyors, pallet circulation systems, stackers, brick blank transfer forklifts, etc.
Main parameter of QMY10-25 movable concrete hollow block machine:
|
Dimention of block machine
|
3300*2100*2350mm
|
|
Demold method
|
Hydraulic
|
|
Turning method
|
Hydraulic
|
|
Hydraulic system pressure
|
12-20MPA
|
|
Excitation frequency
|
3200hz
|
|
Total power
|
16KW
|
|
Total mass
|
4300KG
|
|
Molding cycle
|
15-20s
|
|
Molding
|
10pcs/mold (400*200*200/390*190*190)
|
|
Product capacity
|
9600pcs/8H
|
|
Hydraulic oil tank
|
66L
|
|
Moving method
|
Electricity move and hydraulic turn
|
|
Excitation way
|
Three-dimensional box excitation
|
|
Raw material
|
Crushed stone,sand,cement,dust and coal fly ash,cinder,slag,gangue,gravel,perlitle and industial wast.
|
|
Concrete Hollow Block size(mm)
|
Pcs/mold
|
Pcs/hr
|
Pcs/8hr
|
|
400*200*200
|
6
|
864pcs
|
9600pcs
|
|
400*150*200
|
8
|
1152pcs
|
15360pcs
|
|
400*250*200
|
4
|
576pcs
|
7680pcs
|
