The Ultimate Guide to Interlocking Paver Tile Block Making Machines: Selection, Operation & ROI

Introduction

From urban walkways and driveways to commercial plazas and public spaces, the global demand for durable, aesthetically pleasing, and cost-effective paving solutions is surging. This growth is driven by the need for sustainable infrastructure that combines functionality with visual appeal. However, traditional paving methods—relying on cut stone, poured concrete, or manually laid bricks—present significant challenges. These include exorbitant labor costs, inconsistent product quality leading to premature wear, and project timelines that stretch on for weeks or months.

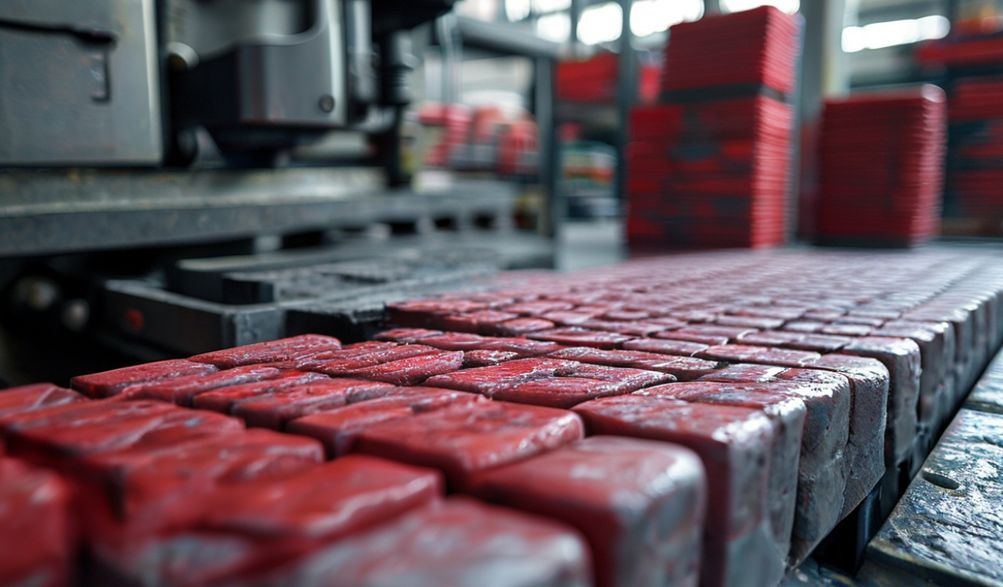

Enter the interlocking paver tile block making machine: a transformative piece of industrial technology that empowers businesses, contractors, and large-scale projects to take control of production. This guide serves as your comprehensive, expert-backed resource. Drawing from direct industry specifications, manufacturer data, and field operational best practices, our goal is to demystify this equipment. We will equip you with the actionable insights needed to make an informed, strategic, and profitable investment, covering everything from machine types and key features to operational setup and a clear-eyed view of your return on investment (ROI).

What is an Interlocking Paver Block Making Machine?

At its core, an interlocking paver block making machine is a specialized press—mechanized, hydraulic, or vibratory—designed to compact raw materials into precise, geometric shapes under immense pressure. It transforms a dry or semi-dry mix of materials like cement, sand, fly ash, and aggregates into solid, high-density blocks.

The magic lies in the “interlocking” design. Unlike traditional rectangular bricks, these pavers have specially engineered edges (tongues and grooves, spacers, or other profiles). When laid together, they create a stable, flexible, and monolithic pavement system that locks itself in place through friction and confinement, eliminating the need for mortar joints.

Core Components and Their Functions

Understanding the key parts of the machine is crucial for operation and troubleshooting:

Hopper & Feeder System: This is where the raw material mix is loaded. A consistent and controlled feed from the hopper into the mold cavity is essential for uniform block weight and density.
Mold / Die: The heart of the machine. This steel cavity defines the block’s shape, size, pattern, and surface texture. A single machine can produce countless designs simply by changing the mold.
Hydraulic System or Vibratory Mechanism: This is the “muscle.” Hydraulic systems use pressurized fluid to exert tonnes of force, compacting the mix. Vibratory tables use high-frequency vibrations to settle and densify the material. Many machines combine both for optimal results.
Control Panel: The “brain.” Ranging from simple manual levers to programmable logic controllers (PLCs), this interface manages the production cycle—feed, compression, vibration, and ejection.
Pallet Feeder & Stacker: These auxiliary systems automate the handling of the steel or wooden pallets that the fresh blocks are formed on. They move pallets into position and stack finished blocks for curing, significantly boosting efficiency and reducing labor.

Types of Interlocking Paver Block Machines: Finding Your Perfect Fit

Selecting the right machine type is the first critical decision. Your choice should align with your production goals, budget, and labor availability.

Manual or Hand-Operated Machines

These are the entry point into block manufacturing, often leveraging a simple lever or flywheel mechanism.

Ideal Use Case: Ideal for micro-enterprises, startups, community projects, or very low-volume, on-demand production.
Pros: Lowest capital investment, minimal electrical requirements, simple mechanics that are easy to understand and repair.
Cons: Highly labor-intensive, low output (typically 100-500 blocks per 8-hour shift), and final block consistency heavily depends on the operator’s skill and rhythm.

Semi-Automatic Machines

This category strikes a balance, automating the core compression and vibration cycles while requiring manual intervention for feeding and block removal.

Ideal Use Case: Perfect for small to medium-scale businesses looking to scale up, contractors supplying local markets, or municipal production units.
Pros: Excellent balance between cost and output (e.g., 800-2,500 blocks per hour). Offers much better consistency than manual machines and requires a smaller crew.
Cons: Still requires periodic operator attention for feeding raw material and removing finished blocks. Output is not continuous.

Fully Automatic Machines

These are complete production lines with automated material feeding, compression, pallet circulation, and block stacking.

Ideal Use Case: Designed for large-scale manufacturing plants, industrial parks, and businesses fulfilling high-volume contracts or supplying to distributors.
Pros: Maximum output (2,500 to 10,000+ blocks per hour), minimal manual labor (primarily for supervision and maintenance), and exceptional, unwavering product consistency.
Cons: Highest initial capital investment. Requires significant space, stable three-phase power, and a more skilled technician for maintenance and programming.

Stationary vs. Mobile Block Making Machines

Beyond automation, consider mobility:
* Stationary Plants are set up in a fixed location, optimized for high-volume, long-term production from a central hub.
* Mobile Machines are mounted on trailers. Their key advantage is the ability to produce pavers directly on large project sites (e.g., road construction, housing developments), slashing transportation costs of finished blocks.

Key Features to Evaluate Before You Buy

Looking beyond basic type, these technical specifications will determine your long-term satisfaction and profitability.

Production Capacity (Blocks Per Hour)

Don’t just look at the peak theoretical output. Consider the sustainable output over an 8-hour shift, accounting for mold changes and breaks. Match this number to your realistic sales projections with room for growth. Overbuying leads to idle capital; underbuying means missed opportunities.

Pressure Rating (Tonnes)

This is a non-negotiable metric for quality. Pressure directly correlates to block density and compressive strength. A machine with a 150-tonne capacity will produce a denser, more durable, and more frost-resistant block than a 50-tonne press using the same mix. For commercial-grade pavers (M30-M40 strength), higher pressure (100+ tonnes) is typically essential.

Mold Versatility and Changeover Time

Your ability to offer different patterns (herringbone, basketweave, circle kits) and sizes (60mm, 80mm, 100mm thick) is a major competitive advantage. Investigate:
* How many mold cavities does the standard die have?
* What is the cost and lead time for additional molds?
* How long does it take to change a mold? Quick-change systems (30-60 minutes) minimize downtime and maximize flexibility.

Automation Level & Control System

The control system dictates ease of use and diagnostic capability. A basic relay system works but offers less precision. A PLC-based system allows you to digitally set parameters like vibration time, pressure dwell time, and feed volume. This ensures repeatability, simplifies operation, and often includes diagnostic error messages that simplify troubleshooting.

Build Quality & After-Sales Support

This is where long-term trust is built. Examine the steel frame’s welding quality and plate thickness. More critically, scrutinize the after-sales support.
* Is there a clear warranty period and terms?
* Does the supplier stock critical spare parts (hydraulic seals, vibration motors, mold liners)?
* Do they provide commissioning, on-site training, and have technicians available for support? A slightly more expensive machine from a supplier with impeccable support is almost always a better investment than a cheap machine you’re left to maintain alone.

Raw Materials & Mix Design for Optimal Blocks

The machine is only as good as the raw materials you feed it. Consistent, high-quality blocks start with a proper mix design.

Common Material Components

Cement: The binder. Ordinary Portland Cement (OPC) is common, but Portland Pozzolana Cement (PPC) incorporating fly ash can improve workability and long-term strength.
Sand: Should be clean, sharp, and well-graded. Fine sand fills voids, while coarser sand provides skeletal structure.
Coarse Aggregate: Crushed stone chips (typically 6mm or 10mm down). Provides the bulk and mechanical strength.
Fly Ash: A pozzolanic industrial by-product that can replace part of the cement, reducing costs and improving later-age strength.
Pigments: Iron oxide pigments are used for colored blocks. Dispersion and dosage are critical for consistent hue.

The Importance of Mix Proportion

The water-cement ratio is paramount. Too much water reduces final strength and can cause blocks to stick in the mold or deform. Too little water leads to poor compaction and weak blocks. A typical mix for a standard M35 paver might have a cement-to-aggregate ratio in the range of 1:4 to 1:6, with just enough water for a “ball-in-hand” consistency—the mix should hold its shape when squeezed but crumble when poked.

Material Preparation: Batching and Mixing

Consistency is king. Use a weigh-batching system instead of volume batching for accuracy. A pan mixer or planetary mixer is ideal for achieving a homogeneous, uniform color mix in 2-3 minutes. Never mix for too long, as this can cause segregation.

The Operational Workflow: From Raw Material to Finished Product

Here’s a step-by-step look at the production cycle in a typical semi- or fully-automatic setup.

Step 1: Material Preparation and Feeding

Weighed batches of raw materials are mixed thoroughly until uniform in color and consistency. This mix is then transferred to the machine’s feed hopper, which meters a precise amount into the mold cavity on the pallet below.

Step 2: Compression and Vibration Cycle

The mold head descends. The machine simultaneously applies high-frequency vibration to settle the mix and immense hydraulic pressure (e.g., 100+ tonnes) to compact it into a solid, dense block. This dual action removes air voids and ensures maximum strength.

Step 3: Curing Process (Critical for Strength)

Freshly ejected “green” blocks are fragile. Curing—the controlled hydration of cement—is what gives them strength.
* Water Sprinkling: Blocks are stacked and kept wet under a shed for 14-28 days. It’s low-cost but ties up inventory and space for weeks.
* Steam Curing: Blocks are placed in a curing chamber and exposed to steam (60-80°C) for 8-12 hours. This accelerates the chemical reaction, allowing blocks to gain over 70% of their strength in a single day. This is the standard for high-throughput commercial plants as it dramatically speeds up the production-to-sales cycle.

Step 4: Quality Control Checks

Regular testing is non-negotiable. Simple checks include:
* Dimensional Accuracy: Use calipers to ensure blocks are within tolerance (typically ±2mm).
* Compressive Strength: Crush sample blocks (after 28 days) in a compression testing machine to verify they meet the claimed grade (M30, M40, etc.).
* Visual Check: Look for consistent color, smooth edges, and absence of cracks or laminations.

Calculating Your Return on Investment (ROI)

A clear financial model is essential. Here’s how to build one.

Initial Investment Breakdown

Machine Cost: The largest component (varies by type).
Additional Molds: Budget for at least 2-3 popular designs.
Auxiliary Equipment: Concrete mixer, loader, pallets (100s required), curing racks or chamber.
Site Setup: Foundation, shed, water, and power connections.

Operational Costs Analysis (Per Month)

Raw Materials: Cement, sand, aggregate, pigment. This is typically 50-70% of your variable cost.
Labor: Wages for operators, mixers, and stackers.
Utilities: Electricity (a major cost for automatic machines) and water.
Maintenance & Spares: A monthly reserve (1-3% of machine cost).
Overheads: Rent, transportation, marketing.

Revenue Projections

Research your local market. What is the selling price per square meter of, say, a standard 60mm thick interlocking paver? Price varies by color, design, and strength. Calculate your production capacity in sqm/month.

Sample ROI Calculation

Disclaimer: This is a simplified illustration. Actual figures vary widely by region, scale, and efficiency.

Scenario: A semi-automatic plant producing 100 sqm of pavers per day (22 days/month).
Investment: $45,000 (machine, molds, mixer, setup).
Operating Cost: $15 per sqm (materials, labor, power).
Selling Price: $25 per sqm.
Gross Profit: $10 per sqm.
Monthly Gross Profit: 100 sqm/day * 22 days * $10 = $22,000.
Monthly Net Profit (after overheads): ~$18,000.
Simple Payback Period: $45,000 / $18,000 ≈ 2.5 months.

This demonstrates the potential, but your own detailed calculation is vital.

Maintenance Checklist for Long Machine Life

Proactive maintenance prevents costly downtime.

Daily: Clean the machine thoroughly, especially the mold area. Check hydraulic oil levels and for leaks. Lubricate all moving parts as per the manual.
Weekly: Inspect mold liners for wear. Check vibration motor mounts and bolts for tightness. Examine hydraulic hoses for abrasions.
Monthly: Change hydraulic oil filters. Calibrate the pressure gauge. Perform a thorough inspection of electrical connections.
Common Wear Parts: Keep spares for mold liners (wear out with use), hydraulic seals (prone to leaks), and vibration motor bearings.

FAQ Section

Q1: What is the average cost range for a paver block machine?
A: Prices vary dramatically. Manual machines can start from $3,000 – $10,000. Semi-automatic machines typically range from $15,000 – $50,000. Fully automatic production lines can cost $60,000 to $250,000+, depending on capacity and sophistication. Always get detailed quotations based on your specifications.

Q2: Can one machine produce different paver designs?
A: Absolutely. This is a key advantage. By changing the mold/die, a single machine can produce dozens of different shapes, sizes, and surface textures. You will need to purchase each specific mold separately.

Q3: What is the typical strength of blocks produced?
A: With a proper mix design and adequate machine pressure, it’s standard to produce blocks with a compressive strength of 30 MPa (M30) to 40 MPa (M40) or higher. This is more than sufficient for driveways, parking lots, and most public walkways.

Q4: Is special training required to operate the machine?
A: Yes. While manual machines are straightforward, operating and maintaining semi- and fully-automatic machines requires specific training on safety procedures, control panel operation, basic troubleshooting, and mix design. A reputable supplier should include comprehensive training during machine commissioning.

Q5: What are the most common problems and how to fix them?
A:
* Blocks sticking in mold: Likely caused by an overly wet mix, worn mold liners, or insufficient mold release agent. Adjust water content and inspect the mold.
* Poor surface finish or cracks: Often due to an incorrect mix (too dry/too sandy), uneven feeding, or vibration issues. Re-check your mix proportions and ensure the feeder is distributing material evenly.
* Low block density/strength: The most common cause is insufficient compaction pressure or vibration time. Check hydraulic pressure settings and vibration timer. Also, verify your raw material quality and water-cement ratio.

Conclusion

Choosing the right interlocking paver block making machine is a strategic decision that hinges on a clear understanding of your production goals, budget, and the technical support available. As we’ve explored, success in this venture relies not just on purchasing a machine, but on mastering the entire ecosystem—from the material science of mix design to the disciplined rhythms of operation and proactive maintenance.

We strongly advise you to conduct thorough due diligence. Request material test reports and production demonstrations from suppliers. If possible, visit an existing plant using the machine you’re considering to see it in action. Prioritize suppliers with a proven track record of quality machinery and reliable, accessible after-sales service over those offering only the lowest upfront price. This investment is more than a piece of equipment; it’s a foundation for building sustainable infrastructure and a profitable, resilient business for the future.
