Rain Water Drainage Pipe Making Machine Culvert Cement Concrete Pipe Molds Machinery

Name: Rain Water Drainage Pipe Making Machine Culvert Cement Concrete Pipe Molds Machinery - tophighmachinery.com
Price: 3800.00 USD
Availability: InStock

Original price was: $4,000.00.Current price is: $3,800.00.

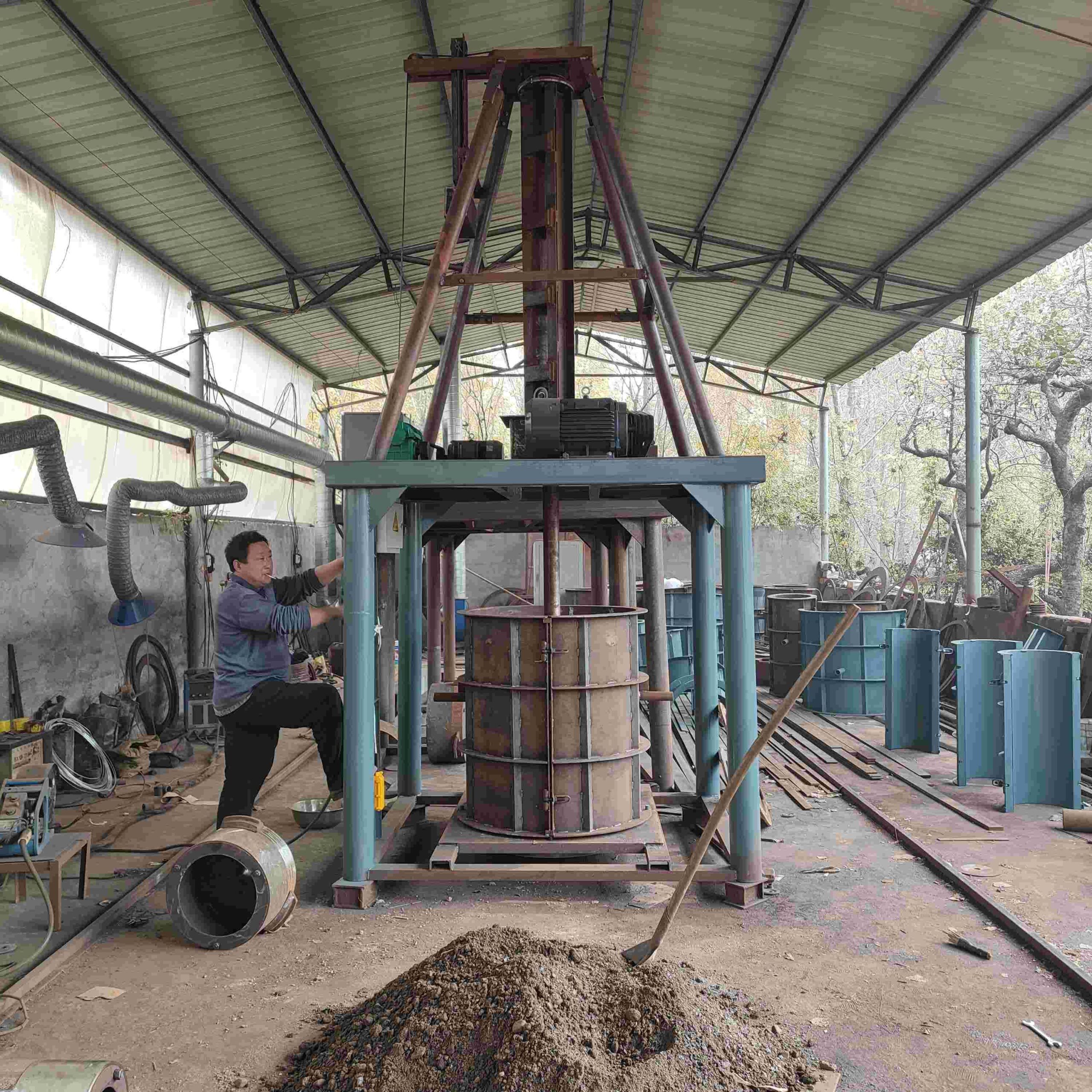

The vertical automatic cement pipe-making machine is a large-scale specialized piece of equipment used to manufacture circular hollow components such as concrete drainage pipes, culverts, and utility poles. It employs a “vertical radial extrusion” process, utilizing vertical (vertical) reinforcement placement, vertical concrete pouring, vertical radial extrusion molding, and vertical curing—a fully or semi-automatic pipe-making system.

High Efficiency: Short production cycle; typically, a pipe of approximately Φ1000mm takes only 5-10 minutes, far faster than traditional centrifugal processes.

High Density and High Strength: The triple action of “vertical extrusion + radial extrusion + vibration” results in a very dense pipe structure, high concrete strength, and excellent impermeability.

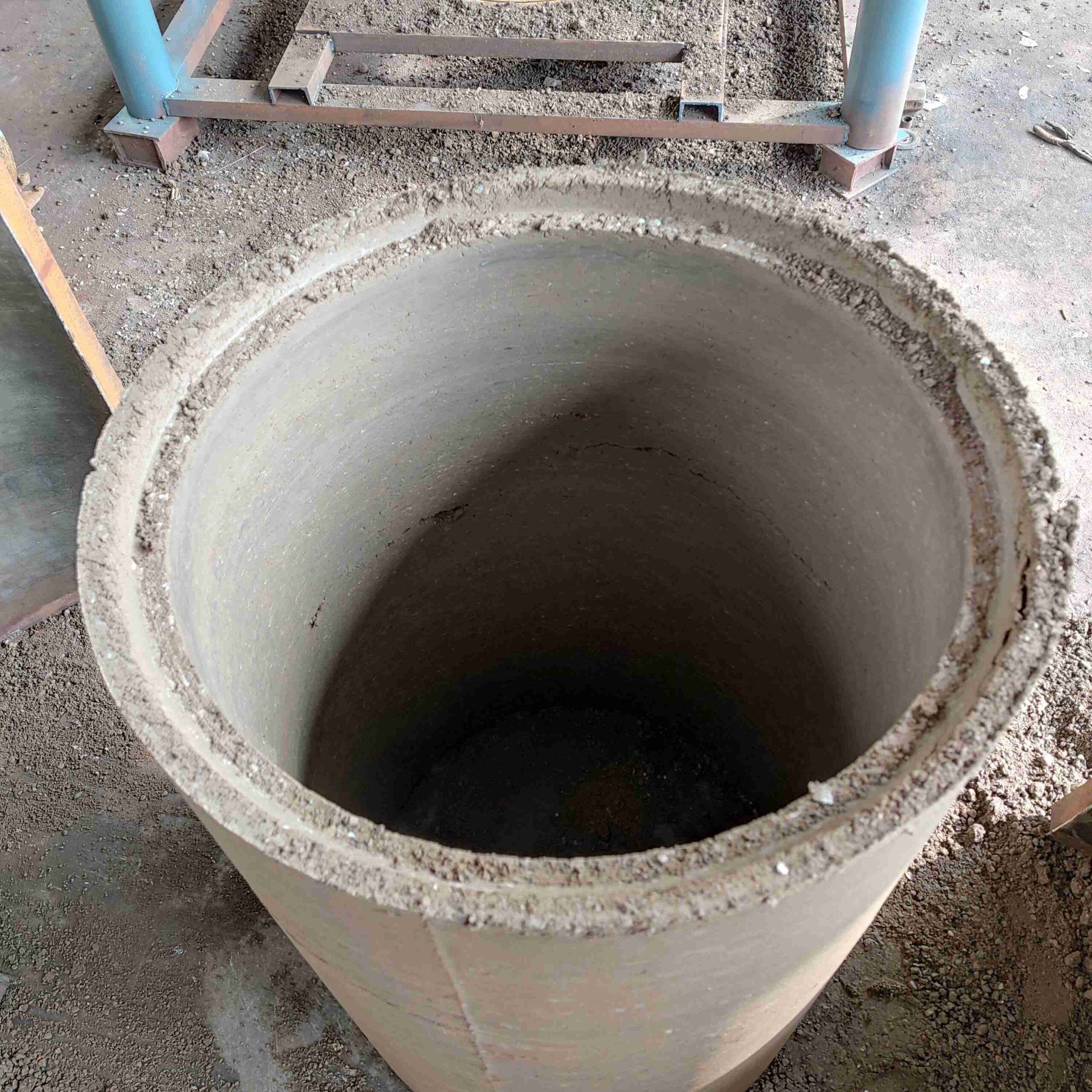

Smooth Inner Wall: Due to the smooth surface of the inner mold and its close contact with the concrete, the inner wall of the formed pipe is very smooth, resulting in low water flow resistance and strong flow capacity.

High Degree of Automation: From material placement to extrusion molding, the entire process is automated. Workers only need to operate the equipment and perform hoisting, resulting in low labor intensity and relatively low skill requirements for workers.

Reliable Reinforcing Steel Cage Fixation:The reinforcing steel cage is firmly compressed into the concrete during the forming process, ensuring accurate positioning and uniform protective layer thickness.

Environmentally Friendly:Closed-mold forming results in relatively low noise (compared to centrifuges) and less dust pollution.

Category: other construction equipments

Description

Product details

Rain Water Drainage Pipe Making Machine Culvert Cement Concrete Pipe Moulds Machinery factory

Rain Water Drainage Pipe Making Machine Culvert Cement Concrete Pipe Moulds Machinery details

cement concrete culvert pipe making machine is ideal equipment which produce cement pipes. It’s with reasonable design, beautiful appearance, reliable operation, easy to operate,etc. Concrete pipes produced by this machine have characteristics as follows:

inside and outside walls are smooth; Hard to be permeated; High compressive strength, low price, Joints are solid and reliable;
Easy to operate, High production efficiency.
Its products are widely applied in the farm irrigation, drainage, quality is very reliable.

Mahsulot texnik tavsiflari

Application	Drain Pipe
Speed of main shaft	45rolls/min
Moulding cycle	5-10 min
used in	agricultural irrigation, urban water supply
Overall dimenstion	184017004000mm
Reducer rate	1000mm
Whole power	11.75kw (motor:7.5kw)
Model Number	V vertical extruding pipe-making machine
Mould diameter (inside mm)	Ï†200, Ï†300, Ï†400, Ï†500, Ï†600, Ï†700, Ï†800, Ï†1000
Wall Thickness	Ï†200 30mm, Ï†300 30mm,Ï†400 40mm, Ï†500 50mm, Ï†600 60mm, Ï†700 70mm,Ï†800 80mm ,Ï†1000 100mm

Details Images

Rain Water Drainage Pipe Making Machine Culvert Cement Concrete Pipe Moulds Machinery manufacture

II. Main Components:A typical vertical automatic cement pipe making machine usually includes the following key systems:

Main Frame and Platform:A robust steel structure providing support and a foundation for the entire equipment.

Mold System:

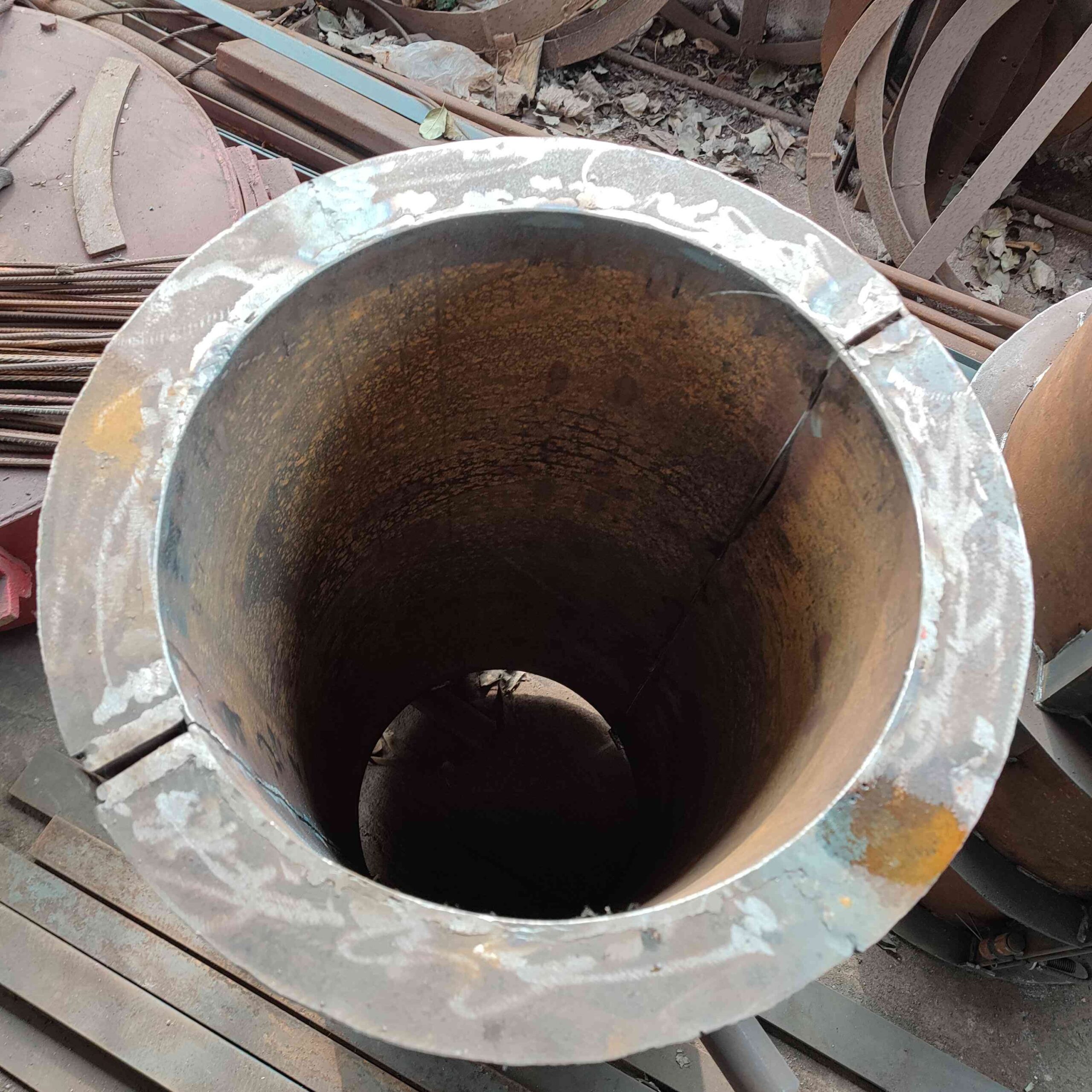

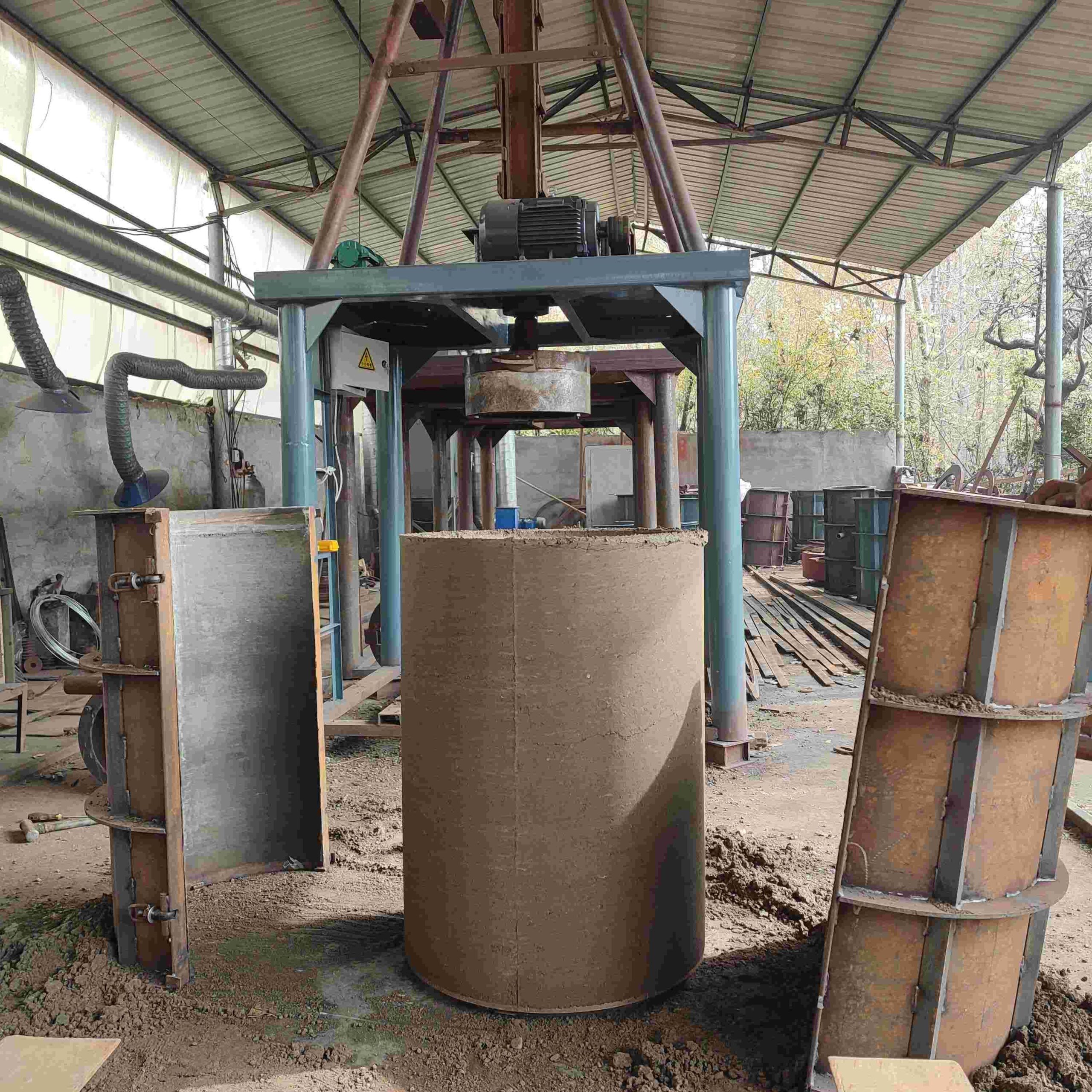

Outer Mold (Pipe Mold):A fixed cylindrical steel structure that determines the outer diameter and appearance of the pipe.

Inner Mold (Expansion/Contraction Core Mold):The core component, a conical or cylindrical steel mold that can expand and contract radially. It compresses the concrete during expansion and demolds it after contraction. It determines the inner diameter of the pipe.

Concrete Placing System:Located at the top of the equipment, this is a rotating hopper and distributor.

It evenly distributes concrete within the annular space between the inner and outer molds.

Concrete Placing System:Located at the top of the equipment, this is a rotating hopper and distributor.

It evenly distributes concrete within the annular space between the inner and outer molds. Extrusion and Vibration System:
Main Extrusion Head: Attached to the lower end of the main shaft, located inside the inner mold. It can move up and down, applying enormous downward vertical pressure to the concrete.

Vibrators: Multiple sets of high-frequency attached vibrators are installed on the outer mold, simultaneously extruding and compacting the concrete to ensure thorough densification.
